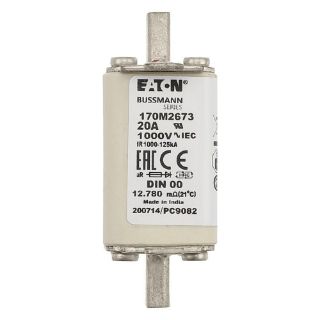

Actual Product May Vary From Image

170M2673 BSF

Name: 170M2673 BSF
Brand: Bussmann
SKU: 170M2673 BSF
Availability: OutOfStock

Bussmann 170M2673 Type T High Speed Fuse, 20 A, 1000 V, 125 kA Interrupt, Class: aR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M2673

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Type T

Description

Bussmann High Speed Fuse, Type T, Series: 170M, Indicating, 20 A, 1000 V, 125 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Din 43-620 Blade End Terminal, Square Body, Ceramic, 30 mm L x 60 mm W x 78.5 mm H Body

Application

Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power

Standards

CE Marking | CSA Certified | IEC 60269 Part 4 | RoHS Compliant | UL Listed

Features

Excellent DC performance
Low arc voltage and low energy let-through
Low wattage loss
Superior cycling capability

Specifications

Amperage Rating:	20 A
Body Size:	30 mm L x 60 mm W x 78.5 mm H
Body Type:	Square
Class:	aR
Frequency Rating:	45 to 1000 Hz
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	125 kA
Material:	Ceramic
Series:	170M
Terminal Type:	Din 43-620 Blade End
Voltage Rating:	1000 V
