Actual Product May Vary From Image

170M2676 BSF

Name: 170M2676 BSF
Brand: Bussmann
SKU: 170M2676 BSF
Availability: OutOfStock

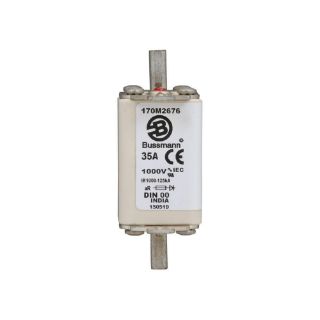

Bussmann 170M2676 Semi-Conductor High Speed Fuse, 35 A, 1000 V, 125 kA Interrupt, Class: aR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M2676

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 35 A, 1000 V, 125 kA Interrupt, Class: aR, Square Body, 78.5 mm L x 30 mm W x 47 mm H Body

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems Applications

Standards

CSA Certified | IEC Certified | RoHS Compliant | UL Listed

Features

Package Type: Standard
Width: 0.315 in
Weight: 1.6456 lbs
Length: 5.433 in
Height: 2.087 in

Specifications

Amperage Rating:	35 A
Body Size:	78.5 mm L x 30 mm W x 47 mm H
Body Type:	Square
Class:	aR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	125 kA
Series:	170M
Voltage Rating:	1000 V
