170M2685 BSF

Name: 170M2685 BSF
Brand: Bussmann
SKU: 170M2685 BSF
Availability: OutOfStock

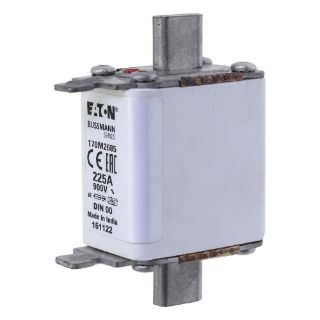

Bussmann 170M2685 High Speed Fuse, 225 A, 690/700 V, 125 kA Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M2685

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Description

Bussmann High Speed Fuse, Series: 170M, Indicating/Non-Indicating: Indicating, 225 A, 690/700 V, 125 kA Interrupt, Class: AR, Knife Blade Terminal, Square Body Type, 217 mm L x 85 mm W x 65 mm H Body Size

Application

Electrical Assemblies, Panels, OEMs, Semiconductor Protection Applications, Safety and Security Systems

Standards

IEC Certified | RoHS Compliant

Specifications

Amperage Rating:	225 A
Body Size:	217 mm L x 85 mm W x 65 mm H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	125 kA
Series:	170M
Terminal Type:	Knife Blade
Voltage Rating:	690/700 V
