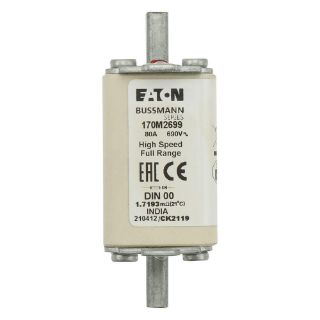

Actual Product May Vary From Image

170M2699 BSF

Name: 170M2699 BSF
Brand: Bussmann
SKU: 170M2699 BSF
Availability: OutOfStock

Bussmann 170M2699 Square Body Type T High Speed Fuse, 80 A, 690 V, 200 kA Interrupt, Class: gR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M2699

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Square Body Type T

Description

Bussmann High Speed Fuse, Square Body Type T, Series: 170M, Non-Indicating, 80 A, 690 V, 200 kA Interrupt, Class: gR, 45 to 1000 Hz Frequency, Blade End x Din 43-620 Blade End Terminal, Busbar Mounting, Square Body, Ceramic, 30 mm L x 60 mm W x 78.5 mm H Body

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Marking | IEC Certified | RoHS Compliant | UL Listed | PROP65: This product can expose you to chemicals including - nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Amperage Rating:	80 A
Body Size:	30 mm L x 60 mm W x 78.5 mm H
Body Type:	Square
Class:	gR
Frequency Rating:	45 to 1000 Hz
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Material:	Ceramic
Mounting Type:	Busbar
Series:	170M
Terminal Type:	Blade End x Din 43-620 Blade End
Voltage Rating:	690 V
