Actual Product May Vary From Image

170M2760 BSF

Name: 170M2760 BSF
Brand: Bussmann
SKU: 170M2760 BSF
Availability: OutOfStock

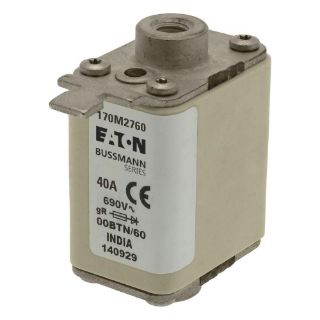

Bussmann 170M2760 Type T High Speed Fuse, 40 A, 690/700 V, 200 kA Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M2760

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Type T

Description

Bussmann High Speed Fuse, Type T, Series: 170M, Indicating/Non-Indicating: Indicating, 40 A, 690/700 V, 200 kA Interrupt, Class: AR, Blade Terminal, Flush Mount, Square Body Type, 30 mm W x 62 mm D x 64 mm H Body Size

Application

Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starter, Safety and Security Systems

Standards

Features

Excellent DC performance
Low arc voltage and low energy let through
Low wattage loss
Superior cycling capability

Specifications

Amperage Rating:	40 A
Body Size:	30 mm W x 62 mm D x 64 mm H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	200 kA
Mounting Type:	Flush
Series:	170M
Terminal Type:	Blade
Voltage Rating:	690/700 V
