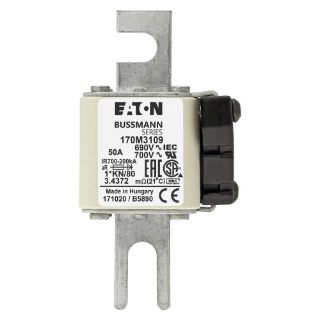

170M3109 BSF

Product Details

Manufacturer:
Manufacturer part number:
170M3109
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 35 days
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Indicating/Non-Indicating: Non-Indicating, 50 A, 690/700 V, 200 kA Interrupt, Class: AR, Blade Terminal, DIN 43 620 Blade Style Mount, Square Body Type, 5.433 in L x 0.315 in W x 2.087 in H Body Size

Application

Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters and Rectifiers Applications, Safety and Security Systems

Standards

CE Certified | IEC Certified | RoHS Compliant | UL Recognized

Features

  • Package Type: Standard
  • Clearing (I2T): Clearing at 660V: 515
  • Connection Type: Blade End x Blade End
  • Width: 0.315 in
  • Weight: 1.6456 lbs
  • Clearing Loss: 11
  • Length: 5.433 in
  • Pre Arc (I2T): Current pre-arc: 77
  • Height: 2.087 in

Specifications

Amperage Rating:50 A
Body Size:5.433 in L x 0.315 in W x 2.087 in H
Body Type:Square
Class:AR
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Mounting Type:DIN 43 620 Blade Style
Terminal Type:Blade
Voltage Rating:690/700 V
