Home / 170M3215 BSF

170M3215 BSF

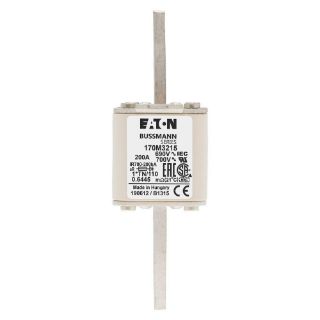

Picture of 170M3215 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
170M3215
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 35 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$853.37 / EA

Description

Brand Name

Bussmann

Type

Type TN/110/T

Description

Bussmann High Speed Fuse, Type TN/110/T, Series: 170M, Non-Indicating, 200 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, Busbar Mounting, Square Body, Ceramic, 104 mm L x 22 mm W x 58 mm H Body

Application

Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power

Standards

CCC Certified | CE Marking | CSA 53787 | CSA Certified File No. 1422-30 | IEC 60269 Part 4 | RoHS Compliant | UL Listed File No. E125085 | UL Listed Guide JFHR2

Features

  • Excellent DC performance
  • Low arc voltage and low energy let-through
  • Low wattage loss
  • Superior cycling capability

Specifications

Amperage Rating:200 A
Body Size:104 mm L x 22 mm W x 58 mm H
Body Type:Square
Class:aR
Frequency Rating:45 to 1000 Hz
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Material:Ceramic
Mounting Type:Busbar
Series:170M
Terminal Type:Blade End
Voltage Rating:690 V
