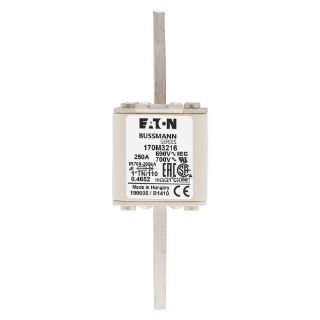

Picture of 170M3216 BSF
Actual Product May Vary From Image

170M3216 BSF

Bussmann 170M3216 Square Body Type TN/110/T High Speed Fuse, 250 A, 690 V, 200 kA Interrupt, Class: aR, Square Body
Manufacturer: Bussmann
Manufacturer part number: 170M3216
Availability: Expected Leadtime 30 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Type

Square Body Type TN/110/T

Description

Bussmann High Speed Fuse, Square Body Type TN/110/T, Series: 170M, Non-Indicating, 250 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43-653 Stud Mounting, Square Body, Ceramic, 134 mm L x 45 mm W x 58 mm H Body

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CCC Certified | CE Marking | CSA Class 53787 | CSA Certified File No. 1422-30 | IEC 60269 Part 4 | RoHS Compliant | UL Listed File No. E125085 | UL JFHR2

Features

  • Excellent DC performance
  • Low arc voltage and low energy let-through
  • Low wattage loss
  • Superior cycling capability
  • Low arc voltage, excellent DC performance, superior cycling capability, designated size 1

Specifications

Amperage Rating:250 A
Body Size:134 mm L x 45 mm W x 58 mm H
Body Type:Square
Class:aR
Frequency Rating:45 to 1000 Hz
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Material:Ceramic
Mounting Type:DIN 43-653 Stud
Series:170M
Terminal Type:Blade End
Voltage Rating:690 V
