170M3218 BSF

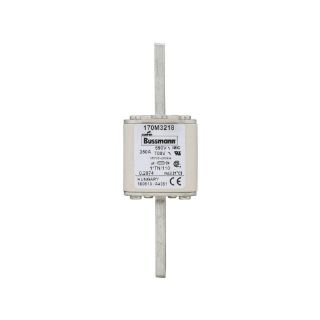

Picture of 170M3218 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
170M3218
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 36 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$947.61 / EA

Description

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, 350 A, 1250/1300 V, 200 kA Interrupt, Class: AR, Blade Terminal, Stud Mount, 134 mm L x 45 mm W x 58 mm H Body Size

Application

Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems

Standards

CE Certified | CSA Certified | IEC 60269 | RoHS Compliant | UL Listed | UL Recognized

Features

Connection Type: Blade End x Blade End

Specifications

Amperage Rating:350 A
Body Size:134 mm L x 45 mm W x 58 mm H
Class:AR
Interrupt Rating:200 kA
Mounting Type:Stud
Terminal Type:Blade
Voltage Rating:1250/1300 V
