170M3223 BSF

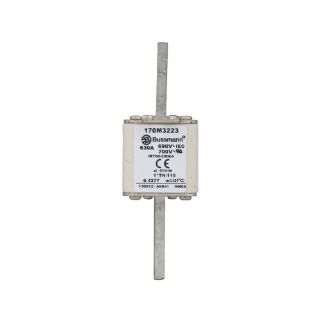

Picture of 170M3223 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
170M3223
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 30 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,063.20 / EA

Description

Brand Name

Bussmann

Description

Bussmann High Speed Fuse, Indicating/Non-Indicating: Non-Indicating, 630 A, 690/700 VAC, 200 kAIC Interrupt, Class: AR, Blade End x Blade End Terminal, DIN 43-653 Stud Mount, Square Body Type, 134 mm L x 45 mm W x 58 mm H Body Size

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters and Rectifiers

Standards

CE Certified | CSA Certified | IEC 60269 | IEC Rated | RoHS Compliant | | UL Listed | UL Recognized

Features

Low arc voltage, excellent DC performance, superior cycling capability, designated size 1

Specifications

Amperage Rating:630 A
Body Size:134 mm L x 45 mm W x 58 mm H
Body Type:Square
Class:AR
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kAIC
Mounting Type:DIN 43-653 Stud
Terminal Type:Blade End x Blade End
Voltage Rating:690/700 VAC
