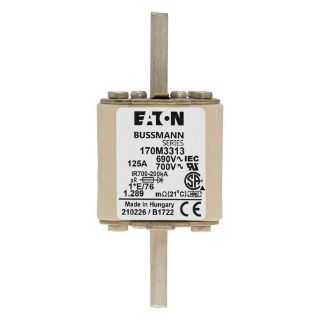

Picture of 170M3313 BSF
Actual Product May Vary From Image

170M3313 BSF

Bussmann 170M3313 Semiconductor Fuse, 125 A, 700 VAC, 200 kA Interrupt, Class: Class AR, Square Body
Manufacturer: Bussmann
Manufacturer part number: 170M3313
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Description

Bussmann Semiconductor Fuse, Non-Indicating, 125 A, 700 VAC, 200 kA Interrupt, Class: Class AR, Square Body Type

Application

DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters

Standards

UL Listed | IEC Certified | CE Certified

Features

  • Package Type: Standard
  • Watt Losses: 26 W
  • Clearing (I2T): Clearing at 660V: 3700
  • Width: 0.315 in
  • Weight: 1.6456 lbs
  • Length: 5.433 in
  • Pre Arc (I2T): 550
  • Height: 2.087 in

Specifications

Amperage Rating:125 A
Body Type:Square
Class:Class AR
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Voltage Rating:700 VAC
