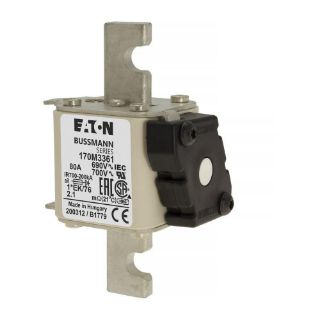

Actual Product May Vary From Image

170M3361 BSF

Name: 170M3361 BSF
Brand: Bussmann
SKU: 170M3361 BSF
Availability: OutOfStock

Bussmann 170M3361 Type K High Speed Square Body Fuse, 80 A, 690/700 VAC, 200 kAIC Interrupt, Class: AR, Square French Body

Manufacturer: Bussmann

Manufacturer part number: 170M3361

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Type K

Description

Bussmann High Speed Square Body Fuse, Type K, Series: 170M, Indicating/Non-Indicating: Indicating, 80 A, 690/700 VAC, 200 kAIC Interrupt, Class: AR, Blade/Bolted Down Terminal, Stud Mount, Square French Body, 102 mm L x 59 mm W x 45 mm H Body Size

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Certified | IEC 60269 Part 4 | RoHS Compliant | UL File No. E125085, JFHR2 Recognized

Features

Excellent DC performance
Low arc voltage and low energy let-through
Low wattage loss
Superior cycling capability

Specifications

Amperage Rating:	80 A
Body Size:	102 mm L x 59 mm W x 45 mm H
Body Type:	Square French
Class:	AR
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	200 kAIC
Mounting Type:	Stud
Series:	170M
Terminal Type:	Blade/Bolted Down
Voltage Rating:	690/700 VAC
