Actual Product May Vary From Image

170M3441 BSF

Name: 170M3441 BSF
Brand: Bussmann
SKU: 170M3441 BSF
Availability: OutOfStock

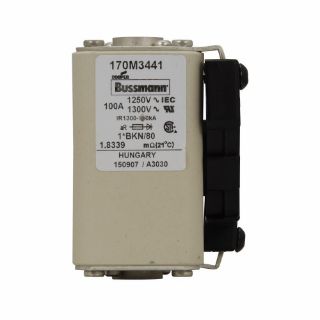

Bussmann 170M3441 Type K High Speed Fuse, 100 A, 690/700 V, 100 kA Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M3441

Availability: Expected Leadtime 36 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Type K

Description

Bussmann High Speed Fuse, Type K, Series: 170M, Indicating/Non-Indicating: Indicating, 100 A, 690/700 V, 100 kA Interrupt, Class: AR, Threaded Socket Terminal, Flush Mount, Square Body Type, 59 mm W x 45 mm D x 81 mm H Body Size

Application

Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starter, Safety and Security Systems

Standards

CE Certified | IEC 60269 Part 4 | RoHS Compliant | UL Recognized

Features

Excellent DC performance
Low arc voltage and low energy let through
Low wattage loss
Superior cycling capability

Specifications

Amperage Rating:	100 A
Body Size:	59 mm W x 45 mm D x 81 mm H
Body Type:	Square
Class:	AR
Country of Origin:	HU
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	100 kA
Mounting Type:	Flush
Series:	170M
Terminal Type:	Threaded Socket
Voltage Rating:	690/700 V
