170M3460 BSF

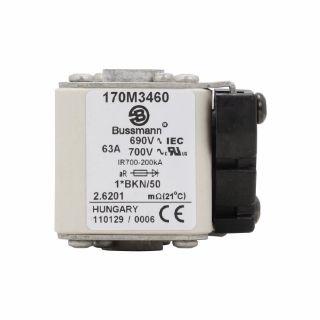

Picture of 170M3460 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
170M3460
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 31 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$719.13 / EA

Description

Brand Name

Bussmann

Description

Bussmann High Speed Fuse, 63 A, 690/700 VAC, 200 kAIC Interrupt, Class: AR, Flush Mount, Square Body Type, 51 mm L x 45 mm W x 59 mm H Body Size

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Certified | CSA Certified | IEC 60269 | IEC Rated | RoHS Compliant | | UL Listed | UL Recognized

Features

Low arc voltage, excellent DC performance, superior cycling capability, designated size 1

Specifications

Amperage Rating:63 A
Body Size:51 mm L x 45 mm W x 59 mm H
Body Type:Square
Class:AR
Interrupt Rating:200 kAIC
Mounting Type:Flush
Voltage Rating:690/700 VAC

Resources
