170M3673 BSF

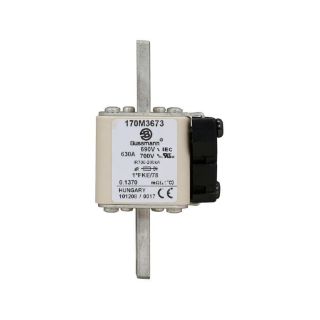

Picture of 170M3673 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
170M3673
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 29 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$915.54 / EA

Description

Brand Name

Bussmann

Description

Bussmann Semiconductor Fuse, Non-Indicating, 630 A, 700 VAC, 200 kA Interrupt, Class: Class AR, Square Body Type

Application

DC Common Bus, DC Drives, Power Converters and Rectifiers Applications

Standards

UL Listed | CSA Certified | CE Certified | IEC 60269

Features

  • Package Type: Standard
  • Watt Losses: 80 W
  • Clearing (I2T): Clearing at 660V: 325000
  • Connection Type: Blade End x Blade End
  • Width: 0.315 in
  • Weight: 1.6456 lbs
  • Length: 5.433 in
  • Pre Arc (I2T): 48500
  • Height: 2.087 in

Specifications

Amperage Rating:630 A
Body Type:Square
Class:Class AR
Country of Origin:HU
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Voltage Rating:700 VAC
