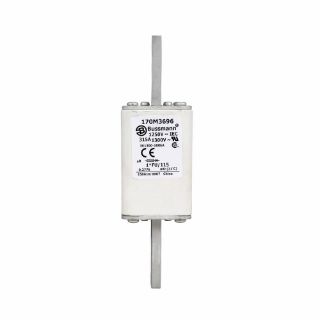

Actual Product May Vary From Image

170M3696 BSF

Name: 170M3696 BSF
Brand: Bussmann
SKU: 170M3696 BSF
Availability: OutOfStock

Bussmann 170M3696 Square Body High Speed Fuse, 315 A, 1250 V, 100 kA Interrupt, Class: aR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M3696

Availability: Expected Leadtime 49 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Square Body

Description

Bussmann High Speed Fuse, Square Body, Series: 170M, Non-Indicating, 315 A, 1250 V, 100 kA Interrupt, Class: aR, Blade End Terminal, Threaded Mounting, Square Body, 156 mm L x 45 mm W x 59 mm H Body

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Marking | CSA Certified | IEC 269 | RoHS Compliant | UL Listed

Features

Excellent DC performance
Low arc voltage and low energy let-through
Low wattage loss
Superior cycling capability
Low arc voltage, excellent DC performance, superior cycling capability, designated size 1

Specifications

Amperage Rating:	315 A
Body Size:	156 mm L x 45 mm W x 59 mm H
Body Type:	Square
Class:	aR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100 kA
Mounting Type:	Threaded
Series:	170M
Terminal Type:	Blade End
Voltage Rating:	1250 V
