Actual Product May Vary From Image

170M3697 BSF

Name: 170M3697 BSF
Brand: Bussmann
SKU: 170M3697 BSF
Availability: OutOfStock

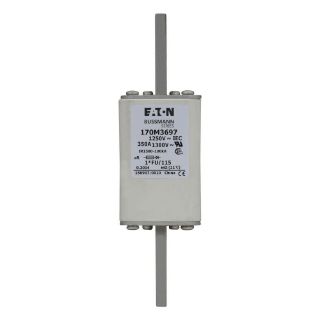

Bussmann 170M3697 High Speed Fuse, 350 A, 1250 VAC, 100 kAIC Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M3697

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Description

Bussmann High Speed Fuse, Indicating/Non-Indicating: Non-Indicating, 350 A, 1250 VAC, 100 kAIC Interrupt, Class: AR, Square Body Type, 156 mm L x 45 mm W x 59 mm H Body Size

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Certified | CSA Certified | IEC 60269 | RoHS Compliant | UL Recognized

Features

65 W power loss
Low arc voltage, excellent DC performance, superior cycling capability, designated size 1

Specifications

Amperage Rating:	350 A
Body Size:	156 mm L x 45 mm W x 59 mm H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100 kAIC
Voltage Rating:	1250 VAC
