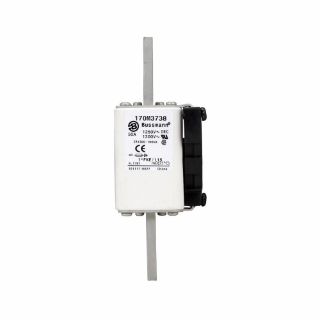

Actual Product May Vary From Image

170M3738 BSF

Name: 170M3738 BSF
Brand: Bussmann
SKU: 170M3738 BSF
Availability: OutOfStock

Bussmann 170M3738 High Speed Type K US Style Fuse, 50 A, 1250/1300 VAC/900 VDC, 100 kA Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M3738

Availability: Expected Leadtime 52 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

High Speed Type K US Style

Description

Bussmann Fuse, High Speed Type K US Style, Series: 170M, Indicating/Non-Indicating: Indicating, 50 A, 1250/1300 VAC/900 VDC, 100 kA Interrupt, Class: AR, Blade/Bolted Down Terminal, Stud Mount, Body Type: Square, 156 mm L x 45 mm W x 59 mm H Body Size

Application

DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starter

Standards

IEC 60269 Part 4 | UL Recognized | CSA Certified | CCC Certified | CE Certified

Features

Excellent DC performance
Low arc voltage and low energy let-through (I2t)
Low wattage loss
Superior cycling capability
1250 VAC for IEC, 1300 VAC for UL

Specifications

Amperage Rating:	50 A
Body Size:	156 mm L x 45 mm W x 59 mm H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	100 kA
Mounting Type:	Stud
Series:	170M
Terminal Type:	Blade/Bolted Down
Voltage Rating:	1250/1300 VAC/900 VDC
