Actual Product May Vary From Image

170M3745 BSF

Name: 170M3745 BSF
Brand: Bussmann
SKU: 170M3745 BSF
Availability: OutOfStock

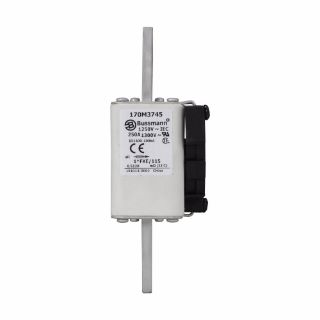

Bussmann 170M3745 Semi-Conductor High Speed Fuse, 250 A, 1250 V, 100 kA Interrupt, Class: aR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M3745

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 250 A, 1250 V, 100 kA Interrupt, Class: aR, Square Body, 5.433 in L x 0.315 in W x 2.087 in H Body

Application

Safety and Security Systems, Electrical Assemblies, Panels and EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers, Critical Power, Industrial Facilities and Factories - Facility and Reduced Voltage Starters Applications

Standards

CE Marking | CSA Certified | IEC Certified | RoHS Compliant | UL Listed

Features

Package type - standard
Watt losses - 55 W
Clearing (I2T): clearing at 1000 V: 54500, clearing at 1250 V: 73000
Pre Arc (I2T): 9200

Specifications

Amperage Rating:	250 A
Body Size:	5.433 in L x 0.315 in W x 2.087 in H
Body Type:	Square
Class:	aR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100 kA
Series:	170M
Voltage Rating:	1250 V
