170M3909 BSF

Name: 170M3909 BSF
Brand: Bussmann
SKU: 170M3909 BSF
Availability: OutOfStock

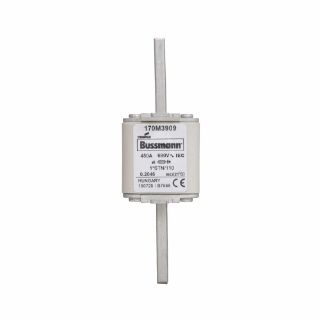

Bussmann 170M3909 Square Body Type STN/110 High Speed Fuse, 450 A, 690 V, 200 kA Interrupt, Class: aR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M3909

Availability: Expected Leadtime 35 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Square Body Type STN/110

Description

Bussmann High Speed Fuse, Square Body Type STN/110, Series: 170M, Non-Indicating, 450 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, Square Body, Ceramic, 5.433 in L x 0.315 in W x 2.087 in H Body

Application

Industrial Facilities and Factory Facilities, Safety and Security Systems, Critical Power, Electrical Assemblies, Panels and EOEMs Applications

Standards

RoHS Compliant

Specifications

Amperage Rating:	450 A
Body Size:	5.433 in L x 0.315 in W x 2.087 in H
Body Type:	Square
Class:	aR
Frequency Rating:	45 to 1000 Hz
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Material:	Ceramic
Series:	170M
Terminal Type:	Blade End
Voltage Rating:	690 V
