170M4068 BSF

Name: 170M4068 BSF
Brand: Bussmann
SKU: 170M4068 BSF
Price: 1,307.40 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

170M4068

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 38 days

Estimated dates are contingent upon manufacturer stock.

$1,307.40 / EA

Description

Brand Name

Bussmann

Type

Semi-Conductor

Description

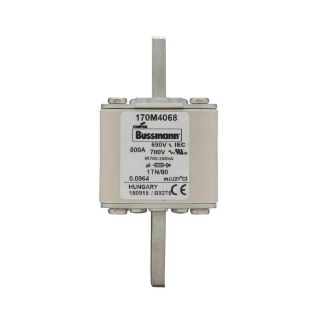

Bussmann High Speed Fuse, Semi-Conductor, Indicating/Non-Indicating: Non-Indicating, 800 A, 690 V, 200 kA Interrupt, Class: AR, Blade Terminal, Stud Mount, Square Body Type, 108 mm L x 53 mm W x 66 mm H Body Size

Application

Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters and Rectifiers Applications, Safety and Security Systems

Standards

Features

Package Type: Standard
Clearing (I2T): Clearing at 660V: 725000
Connection Type: Blade End x Blade End
Width: 2 in
Weight: 0.936 lbs
Length: 2.625 in
Clearing Loss: 95
Pre Arc (I2T): Current pre-arc: 105000
Height: 4.875 in

Specifications

Amperage Rating:	800 A
Body Size:	108 mm L x 53 mm W x 66 mm H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Mounting Type:	Stud
Terminal Type:	Blade
Voltage Rating:	690 V
