170M4663 BSF

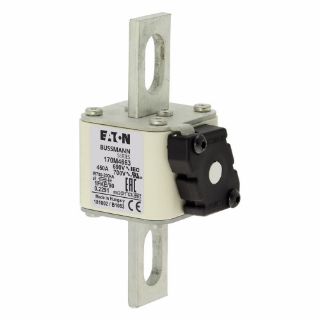

Picture of 170M4663 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
170M4663
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,064.60 / EA

Description

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Indicating/Non-Indicating: Non-Indicating, 450 A, 1000 V, 200 kA Interrupt, Class: AR, Blade Terminal, Square Body Type, 136 mm L x 53 mm W x 69 mm H Body Size

Application

Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters and Rectifiers, Safety and Security Systems

Standards

CE Certified | CSA Certified | IEC 60269 | RoHS Compliant | UL Listed | UL Recognized

Features

70 W power loss

Specifications

Amperage Rating:450 A
Body Size:136 mm L x 53 mm W x 69 mm H
Body Type:Square
Class:AR
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Terminal Type:Blade
Voltage Rating:1000 V
