Actual Product May Vary From Image

170M4830 BSF

Name: 170M4830 BSF
Brand: Bussmann
SKU: 170M4830 BSF
Availability: OutOfStock

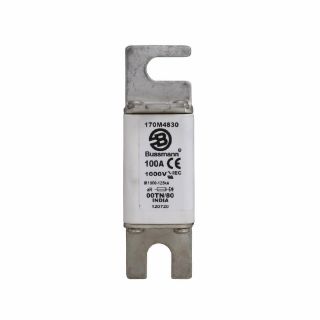

Bussmann 170M4830 High Speed Fuse, 100 A, 690/700 VAC, 125 kAIC Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M4830

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Description

Bussmann High Speed Fuse, Indicating/Non-Indicating: Non-Indicating, 100 A, 690/700 VAC, 125 kAIC Interrupt, Class: AR, Blade End x Din 43-620 Blade End Terminal, DIN 43 620 Blade Mount, Square Body Type, 98 mm L x 30 mm W x 51 mm H Body Size

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Certified | IEC 60269 | IEC Rated | UL Listed | UL Recognized

Features

25 W power loss
Low arc voltage, excellent DC performance, superior cycling capability, designated size 00

Specifications

Amperage Rating:	100 A
Body Size:	98 mm L x 30 mm W x 51 mm H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	125 kAIC
Mounting Type:	DIN 43 620 Blade
Terminal Type:	Blade End x Din 43-620 Blade End
Voltage Rating:	690/700 VAC
