Actual Product May Vary From Image

170M4831 BSF

Name: 170M4831 BSF
Brand: Bussmann
SKU: 170M4831 BSF
Availability: OutOfStock

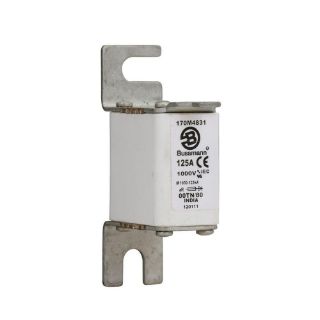

Bussmann 170M4831 Semi-Conductor High Speed Fuse, 125 A, 1000 V, 125 kA Interrupt, Class: aR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M4831

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 125 A, 1000 V, 125 kA Interrupt, Class: aR, Blade End x Din 43-620 Blade End Terminal, DIN 43 620 Blade Style Mounting, Square Body, 5.433 in L x 0.315 in W x 2.087 in H Body

Application

Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power

Standards

CE Marking | IEC Certified | RoHS Compliant | UL Listed

Features

33 W power loss

Specifications

Amperage Rating:	125 A
Body Size:	5.433 in L x 0.315 in W x 2.087 in H
Body Type:	Square
Class:	aR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	125 kA
Mounting Type:	DIN 43 620 Blade Style
Series:	170M
Terminal Type:	Blade End x Din 43-620 Blade End
Voltage Rating:	1000 V
