170M4981 BSF

Name: 170M4981 BSF
Brand: Bussmann
SKU: 170M4981 BSF
Availability: OutOfStock

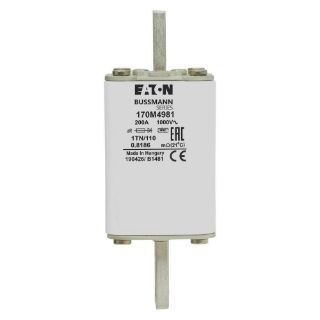

Bussmann 170M4981 High Speed Fuse, 200 A, 690/700 VAC, 150 kAIC Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M4981

Availability: Expected Leadtime 38 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Description

Bussmann High Speed Fuse, Indicating/Non-Indicating: Non-Indicating, 200 A, 690/700 VAC, 150 kAIC Interrupt, Class: AR, DIN 43 620 Blade Mount, Square Body Type, 5.433 in L x 0.315 in W x 2.087 in H Body Size

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Certified | IEC Certified | RoHS Compliant | UL Listed | UL Recognized

Features

45 W power loss

Specifications

Amperage Rating:	200 A
Body Size:	5.433 in L x 0.315 in W x 2.087 in H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	150 kAIC
Mounting Type:	DIN 43 620 Blade
Voltage Rating:	690/700 VAC
