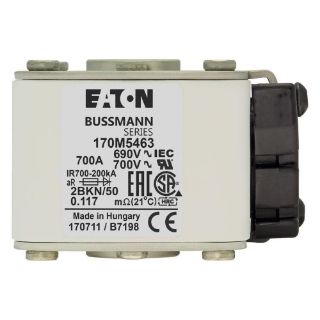

Picture of 170M5463 BSF
Actual Product May Vary From Image

170M5463 BSF

Bussmann 170M5463 High Speed Fuse, 700 A, 690/700 VAC, 200 kAIC Interrupt, Class: AR, Square Body
Manufacturer: Bussmann
Manufacturer part number: 170M5463
Availability: Expected Leadtime 31 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Description

Bussmann High Speed Fuse, Indicating/Non-Indicating: Non-Indicating, 700 A, 690/700 VAC, 200 kAIC Interrupt, Class: AR, Flush Mount, Square Body Type, 51 mm L x 61 mm W x 77 mm H Body Size

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters and Rectifiers

Standards

CE Certified | CSA Certified | IEC 60269 | IEC Rated | RoHS Compliant | | UL Listed | UL Recognized

Features

  • 95 W power loss
  • Low arc voltage, excellent DC performance, superior cycling capability, designated size 2

Specifications

Amperage Rating:700 A
Body Size:51 mm L x 61 mm W x 77 mm H
Body Type:Square
Class:AR
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kAIC
Mounting Type:Flush
Voltage Rating:690/700 VAC
