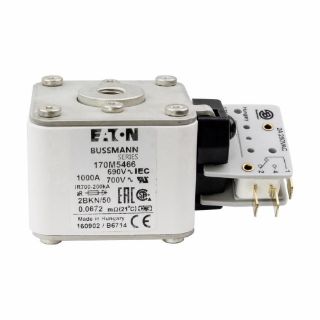

Picture of 170M5466-G BSF
Actual Product May Vary From Image

170M5466-G BSF

Bussmann 170M5466-G Semiconductor Fuse, 1000 A, 1300 VAC, 200 kA Interrupt, Class: Class AR, Square Body
Manufacturer: Bussmann
Manufacturer part number: 170M5466-G
Availability: Expected Leadtime 28 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Description

Bussmann Semiconductor Fuse, Non-Indicating, 1000 A, 1300 VAC, 200 kA Interrupt, Class: Class AR, Flush Mount, Square Body Type

Application

DC Common Bus, DC Drives, Power Converters and Rectifiers Applications

Standards

UL Listed | CSA Certified | CE Certified | IEC 60269

Features

  • Package Type: Standard
  • Watt Losses: 115 W
  • Clearing (I2T): Clearing at 660V: 1250000
  • Width: 2.75 in
  • Weight: 1.207 lbs
  • Length: 2.188 in
  • Pre Arc (I2T): 180000
  • Height: 1.813 in
  • Accessories: Microswitch

Specifications

Amperage Rating:1000 A
Body Type:Square
Class:Class AR
Country of Origin:IN
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Mounting Type:Flush
Voltage Rating:1300 VAC
