Actual Product May Vary From Image

170M5988 BSF

Name: 170M5988 BSF
Brand: Bussmann
SKU: 170M5988 BSF
Availability: OutOfStock

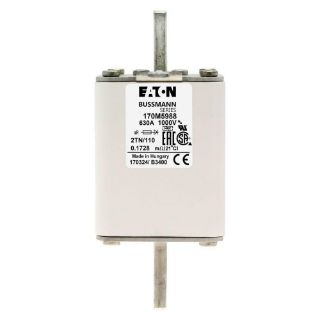

Bussmann 170M5988 Semi-Conductor High Speed Fuse, 630 A, 1000 V, 150 kA Interrupt, Class: aR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M5988

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 630 A, 1000 V, 150 kA Interrupt, Class: aR, DIN 43-653 Stud Mounting, Square Body, 138 mm L x 59 mm W x 75 mm H Body

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Marking | IEC 60269 | IEC Certified | RoHS Compliant | UL Listed

Features

Low arc voltage
Excellent DC performance
Superior cycling capability
Designated size 2
110 W power loss

Specifications

Amperage Rating:	630 A
Body Size:	138 mm L x 59 mm W x 75 mm H
Body Type:	Square
Class:	aR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	150 kA
Mounting Type:	DIN 43-653 Stud
Series:	170M
Voltage Rating:	1000 V
