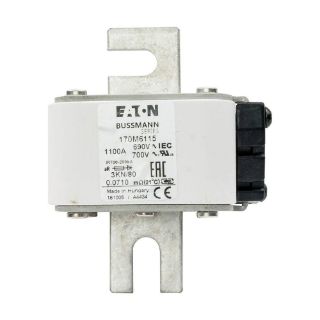

Actual Product May Vary From Image

170M6115 BSF

Name: 170M6115 BSF
Brand: Bussmann
SKU: 170M6115 BSF
Availability: OutOfStock

Bussmann 170M6115 Semi-Conductor High Speed Fuse, 1100 A, 690/700 V, 200 kA Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M6115

Availability: Expected Leadtime 29 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Indicating/Non-Indicating: Non-Indicating, 1100 A, 690/700 V, 200 kA Interrupt, Class: AR, Blade Terminal, DIN 43 620 Blade Style Mount, Square Body Type, 2.75 in L x 3.375 in W x 4.186 in H Body Size

Application

Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters and Rectifiers Applications, Safety and Security Systems

Standards

CE Certified | IEC Certified | RoHS Compliant | UL Recognized

Features

Package Type: Standard
Clearing (I2T): Clearing at 660V: 1300000
Connection Type: Blade End x Blade End
Width: 3.375 in
Weight: 1.897 lbs
Clearing Loss: 130
Length: 2.75 in
Pre Arc (I2T): Current pre-arc: 190000
Height: 4.186 in

Specifications

Amperage Rating:	1100 A
Body Size:	2.75 in L x 3.375 in W x 4.186 in H
Body Type:	Square
Class:	AR
Country of Origin:	HU
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Mounting Type:	DIN 43 620 Blade Style
Terminal Type:	Blade
Voltage Rating:	690/700 V
