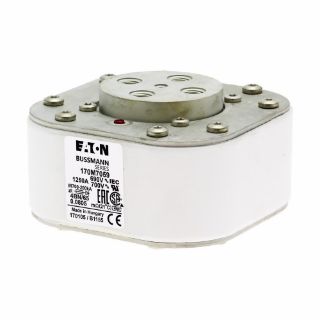

Actual Product May Vary From Image

170M7059 BSF

Name: 170M7059 BSF
Brand: Bussmann
SKU: 170M7059 BSF
Availability: OutOfStock

Bussmann 170M7059 High Speed Visual Fuse, 1250 A, 690/700 VAC, 200 kA Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M7059

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

High Speed Visual

Description

Bussmann Fuse, High Speed Visual, Series: 170M, Indicating/Non-Indicating: Indicating, 1250 A, 690/700 VAC, 200 kA Interrupt, Class: AR, Threaded Terminal, Flush Mount, Body Type: Square, 105 mm W x 105 mm D x 66.6 mm H Body Size

Application

DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starter

Standards

UL File No. E125085, JFHR2 Recognized | IEC 60269 Part 4 | CE Certified

Features

Excellent DC performance
Low arc voltage and low energy let-through (I2t)
Low wattage loss
Superior cycling capability
690 VAC for IEC, 700 VAC for UL

Specifications

Amperage Rating:	1250 A
Body Size:	105 mm W x 105 mm D x 66.6 mm H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	200 kA
Mounting Type:	Flush
Series:	170M
Terminal Type:	Threaded
Voltage Rating:	690/700 VAC
