170M7063 BSF

Name: 170M7063 BSF
Brand: Bussmann
SKU: 170M7063 BSF
Availability: OutOfStock

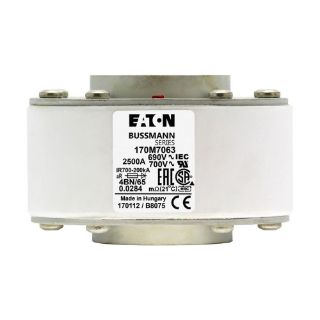

Bussmann 170M7063 High Speed Semiconductor Fuse, 2500 A, 1000 VAC, 200 kA Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M7063

Availability: Expected Leadtime 36 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

High Speed

Description

Bussmann Semiconductor Fuse, High Speed, Non-Indicating, 2500 A, 1000 VAC, 200 kA Interrupt, Class: AR, Flush Mounting, Square Body, 5.433 in L x 0.315 in W x 2.087 in H Body

Application

DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications

Standards

UL Listed | IEC Certified | CE Certified

Features

Package Type: Standard
275 W watt losses
Clearing at 660V: 7800000
1200000 Pre Arc (I2T)
60 deg C temperature rating

Specifications

Amperage Rating:	2500 A
Body Size:	5.433 in L x 0.315 in W x 2.087 in H
Body Type:	Square
Class:	AR
Country of Origin:	HU
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Mounting Type:	Flush
Voltage Rating:	1000 VAC
