170M7081 BSF

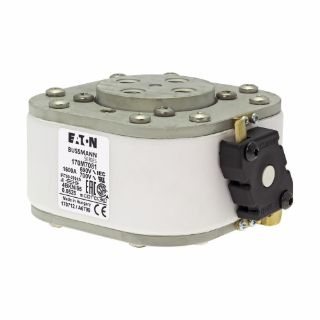

Picture of 170M7081 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
170M7081
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$5,578.21 / EA

Description

Brand Name

Bussmann

Type

Type K

Description

Bussmann High Speed Fuse, Type K, Series: 170M, Indicating, 1600 A, 690/700 VAC, 200 kA Interrupt, Class: AR, Threaded Socket Terminal, Flush Mount, Square Body Type, 66.6 mm H x 120 mm W x 105 mm D Body Size

Application

DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starter

Standards

UL File No. E125085, JFHR2 Recognized | IEC 60269 Part 4 | CE Certified

Features

  • Excellent DC performance
  • Low arc voltage and low energy let-through (I2t)
  • Low wattage loss
  • Superior cycling capability
  • 690 VAC for IEC, 700 VAC for UL

Specifications

Amperage Rating:1600 A
Body Size:66.6 mm H x 120 mm W x 105 mm D
Body Type:Square
Class:AR
Indicating/Non-Indicating:Indicating
Interrupt Rating:200 kA
Mounting Type:Flush
Series:170M
Terminal Type:Threaded Socket
Voltage Rating:690/700 VAC
