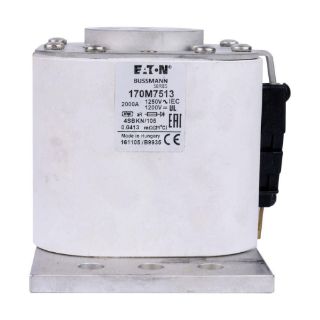

Picture of 170M7513 BSF
Actual Product May Vary From Image

170M7513 BSF

Bussmann 170M7513 Semiconductor Fuse, 2000 A, 1000 VAC, 125 kA Interrupt, Class: Class AR, Square Body
Manufacturer: Bussmann
Manufacturer part number: 170M7513
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Description

Bussmann Semiconductor Fuse, Non-Indicating, 2000 A, 1000 VAC, 125 kA Interrupt, Class: Class AR, Flush Mount, Square Body Type

Application

DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters

Standards

IEC Certified | CE Certified | UL Recognized

Features

  • Package Type: Standard
  • Watt Losses: 235 W
  • Clearing (I2T): Clearing at 1250V: 14500000
  • Width: 4.875 in
  • Weight: 7.309 lbs
  • Length: 4.125 in
  • Pre Arc (I2T): 2300000
  • Height: 4.125 in

Specifications

Amperage Rating:2000 A
Body Type:Square
Class:Class AR
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:125 kA
Mounting Type:Flush
Voltage Rating:1000 VAC
