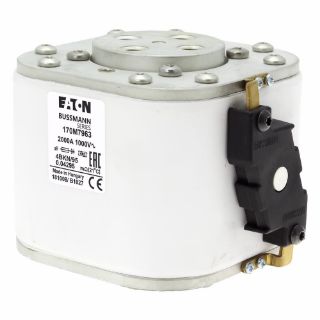

Picture of 170M7963 BSF
Actual Product May Vary From Image

170M7963 BSF

Bussmann 170M7963 Semiconductor Fuse, 2000 A, 125 kA Interrupt, Class: Class AR, Square Body
Manufacturer: Bussmann
Manufacturer part number: 170M7963
Availability: Expected Leadtime 36 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Description

Bussmann Semiconductor Fuse, Non-Indicating, 2000 A, 125 kA Interrupt, Class: Class AR, DIN 43 620 Blade Mount, Square Body Type

Application

DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications

Standards

UL Recognized | IEC Certified | CE Certified

Features

  • Package Type: Standard
  • Watt Losses: 270 W
  • Clearing (I2T): Clearing at 1000V: 8600000
  • Width: 0.315 in
  • Weight: 1.6456 lbs
  • Fuse Size: 4
  • Length: 5.433 in
  • Pre Arc (I2T): 1450000
  • Height: 2.087 in

Specifications

Amperage Rating:2000 A
Body Type:Square
Class:Class AR
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:125 kA
Mounting Type:DIN 43 620 Blade
