Actual Product May Vary From Image

170M8545 BSF

Name: 170M8545 BSF
Brand: Bussmann
SKU: 170M8545 BSF
Availability: OutOfStock

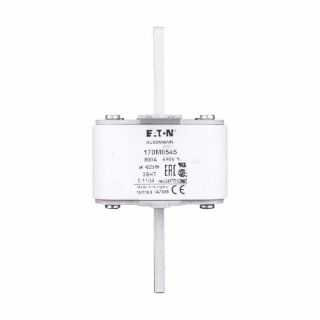

Bussmann 170M8545 Semi-Conductor High Speed Fuse, 800 A, 690 VAC/500 VDC, Class: AR

Manufacturer: Bussmann

Manufacturer part number: 170M8545

Availability: Expected Leadtime 31 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Indicating/Non-Indicating: Non-Indicating, 800 A, 690 VAC/500 VDC, Class: AR, 3-1/2 in L x 2-7/8 in W x 5-15/16 in H Body Size

Application

Electrical Assemblies, Panels, OEMs, Safety and Security Systems

Standards

RoHS Compliant

Features

Package Type: Standard
Width: 2.875 in
Weight: 2.08 lbs
Length: 3.5 in
Height: 5.9375 in

Specifications

Amperage Rating:	800 A
Body Size:	3-1/2 in L x 2-7/8 in W x 5-15/16 in H
Class:	AR
Country of Origin:	HU
Indicating/Non-Indicating:	Non-Indicating
Voltage Rating:	690 VAC/500 VDC
