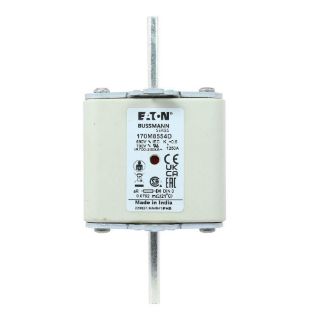

Actual Product May Vary From Image

170M8554D BSF

Name: 170M8554D BSF
Brand: Bussmann
SKU: 170M8554D BSF
Availability: OutOfStock

Bussmann 170M8554D Semi-Conductor High Speed Fuse, 1250 A, 690 V, 200 kA Interrupt, Class: aR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M8554D

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 1250 A, 690 V, 200 kA Interrupt, Class: aR, Din 43-620 Blade End Terminal, DIN 43 620 Blade Mounting, Square Body, 150 mm L x 76 mm W x 88 mm H Body

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Marking | IEC 60269 | IEC Certified | UL Listed

Features

Low arc voltage
Excellent DC performance
Superior cycling capability
Designated size 3
61 W power loss

Specifications

Amperage Rating:	1250 A
Body Size:	150 mm L x 76 mm W x 88 mm H
Body Type:	Square
Class:	aR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Mounting Type:	DIN 43 620 Blade
Series:	170M
Terminal Type:	Din 43-620 Blade End
Voltage Rating:	690 V
