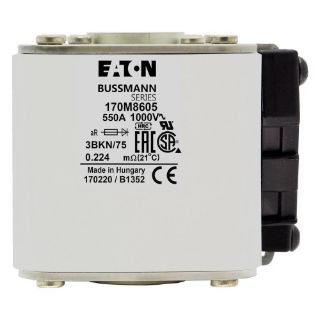

Actual Product May Vary From Image

170M8605 BSF

Name: 170M8605 BSF
Brand: Bussmann
SKU: 170M8605 BSF
Availability: OutOfStock

Bussmann 170M8605 Semi-Conductor High Speed Fuse, 550 A, 690 VAC/500 VDC, 150 kA Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M8605

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Indicating/Non-Indicating: Non-Indicating, 550 A, 690 VAC/500 VDC, 150 kA Interrupt, Class: AR, Flush Mount, Square Body Type, 75.4 mm L x 74 mm W x 92 mm H Body Size

Application

Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters, Safety and Security Systems

Standards

CE Certified | IEC 60269 | RoHS Compliant | UL Listed | UL Recognized

Features

115 W power loss

Specifications

Amperage Rating:	550 A
Body Size:	75.4 mm L x 74 mm W x 92 mm H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	150 kA
Mounting Type:	Flush
Voltage Rating:	690 VAC/500 VDC
