170M8611 BSF

Name: 170M8611 BSF
Brand: Bussmann
SKU: 170M8611 BSF
Availability: OutOfStock

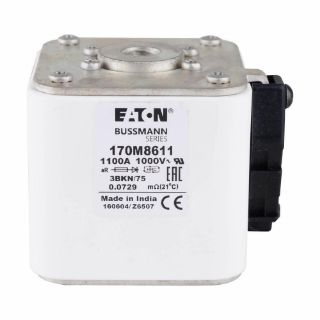

Bussmann 170M8611 Semi-Conductor High Speed Fuse, 1100 A, 1000 V, 150 kA Interrupt, Class: aR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M8611

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 1100 A, 1000 V, 150 kA Interrupt, Class: aR, Flush Mounting, Square Body, 75.4 mm L x 74 mm W x 92 mm H Body

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Marking | IEC 60269 | IEC Certified | RoHS Compliant | UL Listed

Features

Low arc voltage
Excellent DC performance
Superior cycling capability
Designated size 3
155 W power loss

Specifications

Amperage Rating:	1100 A
Body Size:	75.4 mm L x 74 mm W x 92 mm H
Body Type:	Square
Class:	aR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	150 kA
Mounting Type:	Flush
Series:	170M
Voltage Rating:	1000 V
