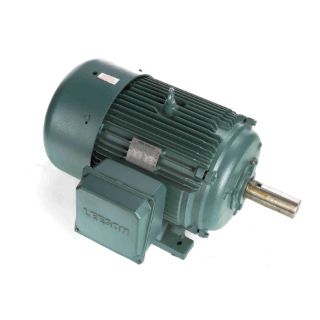

171797.60 LEE

Name: 171797.60 LEE
Brand: Leeson Electric
SKU: 171797.60 LEE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

171797.60

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

4-Pole Continuous-Duty

Description

LEESON® AC Motor, 4-Pole Continuous-Duty, Sewage and Wastewater Pump Motors Application, Severe Duty Motors Special Features, 100 hp, 208 to 230/460 VAC, 250 to 226/113 A, 60 Hz Frequency, 3 ph ph, 1785 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 405T Frame, 2.88 in Dia x 7.25 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 294 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Variable Torque Speed, 37.91 in L x 26.87 in W x 22.32 in H Dimensions

Application

Chemical Plants, Foundries, Pulp, Paper Mills, Waste Management Facilities, Above Ground Mines, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Severe Duty Motors

Specifications

Amperage Rating:	250 to 226/113 A
Application Type:	Sewage and Wastewater Pump Motors
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	37.91 in L x 26.87 in W x 22.32 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	405T
Frequency Rating:	60 Hz
Horsepower:	100 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	2.88 in Dia x 7.25 in L
Speed:	1785 rpm
Temperature Rating:	40 deg C
Torque Rating:	294 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
