Actual Product May Vary From Image

174737.00 LEE

Name: 174737.00 LEE
Brand: Leeson Electric
SKU: 174737.00 LEE
Availability: OutOfStock

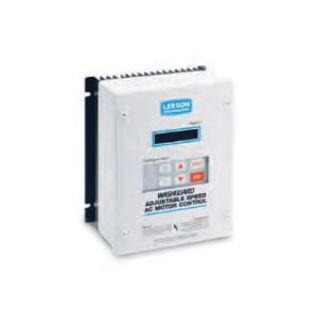

LEESON® 174737.00 Micro Three Phase Input/Output AC Inverter, 200 to 240 VAC, 28 A, 10 hp, 10.26 in W x 8.35 in D

Manufacturer: Leeson Electric

Manufacturer part number: 174737.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

Three Phase Input/Output

Description

LEESON® Washguard® AC Inverter, Three Phase Input/Output, Series: Micro, 200 to 240 VAC, 28 A, 10 hp, 10.26 in Width, 8.35 in D, 13-3/4 in Height, NEMA 4/IP65 Enclosure, Epoxy

Standards

UL Listed

Features

Food-safe white epoxy finish
No external cooling fan required
Water, oil and dust-tight enclosure protected
16 bit intel microprocessor
Choice of using factory quick start program settings
Output frequency up to 120 Hz
150% overload capacity for one minute
Speed reference signals potentiometer, 0 to 10 VDC/4 to 20 mA inputs
Output signal 0 to 10 VDC speed/load
Two auxiliary contacts, one form C relay and two open collector outputs
Four preset speeds
Slip compensation and password protection
Adjustable carrier frequency
Adjustable acceleration and deceleration times
Forward and reverse direction
Time and voltage adjustable DC braking
Password protected
Constant torque with adjustable current limit
Steel enclosure with aluminum heat sinks
Dynamic braking kits available, PID software built-in for motor feedback

Specifications

Amperage Rating:	28 A
Depth:	8.35 in
Enclosure Type:	NEMA 4/IP65
Finish:	Epoxy
Height:	13-3/4 in
Horsepower:	10 hp
Series:	Micro
Voltage Rating:	200 to 240 VAC
Width:	10.26 in
