Actual Product May Vary From Image

1769SC-IR6I SPC

Name: 1769SC-IR6I SPC
Brand: Spectrum Controls
SKU: 1769SC-IR6I SPC
Price: 1,705.50 USD
Availability: OutOfStock

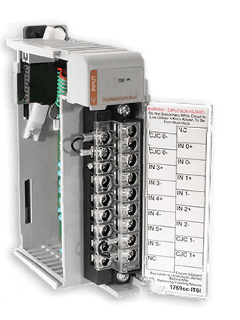

CompactLgx 6-CHNL ISOL RTD

Manufacturer: Spectrum Controls

Manufacturer part number: 1769SC-IR6I

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,705.50

Qty:

Product Details

Brand Name

Spectrum Controls

Description

Provides six channels of fully isolated RTD/Resistance inputs for noisy environments. The module supports six individually programmable input types with open circuit detection and high/low alarms for each channel. Easily configured using RSLogix with accuracy comparable with dedicated analog modules. This module comes with 24/7 TechConnect support from Rockwell Automation.

Standards

UL/cUL Listed ANSI ISA 12.12.01 (Class I, Div 2, Groups ABCD), CE

Features

Six channels of RTD/resistance (2-, 3-, and 4-wire) 8 input types, supports most RTD input types

Specifications

Connection Cables:	For TC inputs: shielded, twisted-pair TC extension wire; For RTD, mV, V, or mA inputs: Belden 8761 or equivalent
Country of Origin:	MUL
Input Signal:	6 RTD/Res
Number of Channels:	6
Operating Temperature:	-0 °C - 60 °C (32 °F - 140 °F)
Sub Brand:	CompactLgx

Resources

Spec Sheet
