Actual Product May Vary From Image

17L050 MSG

Name: 17L050 MSG
Brand: Martin Sprocket & Gear
SKU: 17L050 MSG
Price: 39.02 USD
Availability: OutOfStock

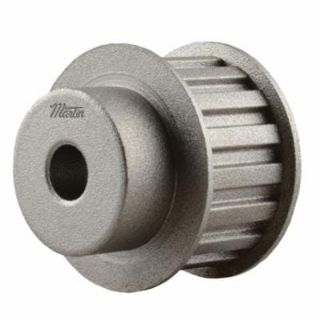

Martin 17L050 Solid Type DF-1 Stock Timing Pulley, 1/2 to 1-1/8 in Minimum Plain/Reborable Bore, 1.999 in OD, 17 Grooves, 2.029 in Dia Pitch, 0.562 in W Face

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 17L050

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$39.02

Qty:

Product Details

Brand Name

Martin

Type

Solid Type DF-1

Description

Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.

Martin Stock Timing Pulley, Solid Type DF-1, Minimum Plain/Reborable Bore, 1/2 to 1-1/8 in Bore Dia, 1.999 in Outside Dia, 2.029 in, 17 Grooves, 3/8 in Pitch, 0.562 in Face Width, 2.256 in Flange Dia, 1-1/2 in Hub Dia, 5/8 in Hub Projection, 1-3/8 in Overall Length, For Use With: 1/2 in W Type L Belt, Steel

Features

Exhibit many of the best features of chain drives and belt drives
Non-slip toothed drive with no metal to metal contact
No lubrication needed
Precise machining and processes ensure consistent finish and high quality

Specifications

Bore Diameter:	1/2 to 1-1/8 in
Bore Type:	Minimum Plain/Reborable
Country of Origin:	US
Face Width:	0.562 in
Flange Diameter:	2.256 in
Hub Diameter:	1-1/2 in
Hub Projection:	5/8 in
Material:	Steel
Number of Grooves:	17
Outside Diameter:	1.999 in
Overall Length:	1-3/8 in
Pitch:	3/8 in
Pitch Diameter:	2.029 in
Suitable For Use With:	1/2 in W Type L Belt
