17Q20H56 DOD

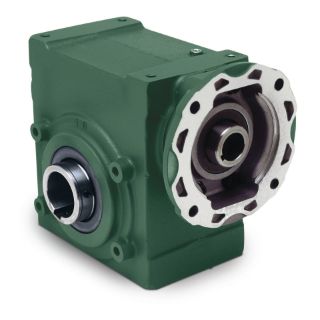

17Q20H56 TIGEAR-2 REDUCER
Manufacturer: Dodge
Manufacturer part number: 17Q20H56
Estimated dates are contingent upon manufacturer stock.
Please login to see accurate availability
$1,079.71

Product Details

Specifications

Base to Output Center Height:1.9900
Base to Output Center Height (Unit):INCH
Bore Diameter (Output):1.0000
Bore Diameter (Output) (Unit):INCH
Bore Length:5.4100
Bore Length (Unit):INCH
Case Size:17
Center Distance:1.7500
Center Distance (Unit):INCH
Horsepower Rating Input:1.0300
Horsepower Rating Input (Unit):HORSEPOWER
Horsepower Rating Output:0.8400
Horsepower Rating Output (Unit):HORSEPOWER
Housing Material:Cast Iron
Input Style:Quill
Lubrication:PAG, Standard Temperature
Motor Compatibility:NEMA Motor, 56C Frame
Mounting Bolt Pattern Length:4.1900
Mounting Bolt Pattern Length (Unit):INCH
Mounting Bolt Pattern Width:2.7500
Mounting Bolt Pattern Width (Unit):INCH
Nominal Ratio:20.0000
Output Shaft:Hollow
Output Shaft Center to Input Motor Mounting Face Distance:4.9000
Output Shaft Center to Input Motor Mounting Face Distance (Unit):INCH
Output Style:Hollow
Overhung Load:1190
Overhung Load (Unit):POUND_FORCE
Paint Type:Standard
Rated Torque Output:602
Rated Torque Output (Unit):INCH_POUND
Seal Type:Single-Lip Contact
Suitable For Washdown:No
Thermal Horsepower Rating:1.5800
Thermal Horsepower Rating (Unit):HORSEPOWER
