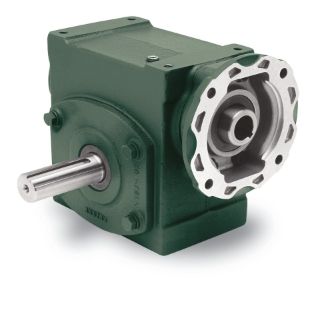

Actual Product May Vary From Image

17Q30L56 DOD

Name: 17Q30L56 DOD
Brand: Dodge
SKU: 17Q30L56 DOD
Price: 805.65 USD
Availability: InStock

17Q30L56 TIGEAR-2 REDUCER

Manufacturer: Dodge

Manufacturer part number: 17Q30L56

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

$805.65

Qty:

Product Details

Base to Output Center Height:	1.9900
Base to Output Center Height (Unit):	INCH
Case Size:	17
Center Distance:	1.7500
Center Distance (Unit):	INCH
Center to End of Shaft Distance:	4.3100
Center to End of Shaft Distance (Unit):	INCH
Horsepower Rating Input:	0.7600
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	0.5700
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	Quill
Lubrication:	PAG, Standard Temperature
Motor Compatibility:	NEMA Motor, 56C Frame
Mounting Bolt Pattern Length:	4.1900
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	2.7500
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	30.0000
Output Shaft:	Left (Solid A)
Output Shaft Center to Input Motor Mounting Face Distance:	4.9000
Output Shaft Center to Input Motor Mounting Face Distance (Unit):	INCH
Output Style:	Left
Overhung Load:	1190
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	615
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Shaft Diameter Output:	0.8750
Shaft Diameter Output (Unit):	INCH
Shaft Length Output:	1.7400
Shaft Length Output (Unit):	INCH
Suitable For Washdown:	No
Thermal Horsepower Rating:	1.2000
Thermal Horsepower Rating (Unit):	HORSEPOWER
