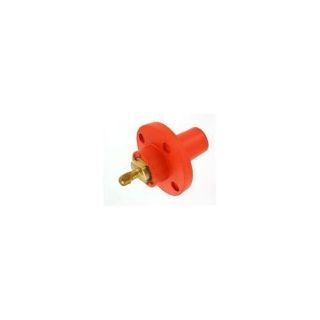

Actual Product May Vary From Image

17R22-O LEV

Name: 17R22-O LEV
Brand: Leviton Manufacturing
SKU: 17R22-O LEV
Availability: OutOfStock

Leviton® 17R22-O 17 Series 90 deg Cam Type Female Taper Nose Single Pole Receptacle, 600 VAC, 690 A, 250 to 750 kcmil Wire, Threaded/Stud Connection, NEMA 3R NEMA Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 17R22-O

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

90 deg Cam Type Female

Description

The 17 series taper nose connectors withstand grueling, heavy duty industrial use. Applications include generator test stations, water purification plants, electro chemical machining equipment and other general industrial uses.

Leviton® Single Pole Receptacle, 90 deg Cam Type Female Taper Nose, Series: 17 Series, 600 VAC, 690 A, 250 to 750 kcmil Wire, Threaded/Stud, Brass Contact, Santroprene TPV Housing, NEMA 3R, Panel Mount, 4-Hole, 1/2-13 UNC, Industrial Grade, Orange, 4.48 in Dia x 7.96 in L

Application

Industrial Applications

Standards

CSA Certified | UL Listed

Features

Intermateable and compatible with competitive cam type products can be retrofitted to existing locations and power distribution systems
Shatter and crack proof, high durometer thermoplastic elastomer (TPV) or neoprene rubber
Color coded insulating sleeves for fast and easy phase identification
Self-compensating for wear slit and cam in male contact provides spring action for longer usage
Quick connect/disconnect twist and pull provided by double cam male and cam button in female
High conductivity positive, vibration proof connection provided by double cam design
Wide range of applications - usable with a wide range of cable and amperage ratings

Specifications

Amperage Rating:	690 A
Color:	Orange
Connection Type:	Threaded/Stud
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	4.48 in Dia x 7.96 in L
Housing Material:	Santroprene TPV
Mounting Type:	Panel
NEMA Rating:	NEMA 3R
Series:	17 Series
Specifications:	4-Hole, 1/2-13 UNC
Voltage Rating:	600 VAC
Wire Size:	250 to 750 kcmil
