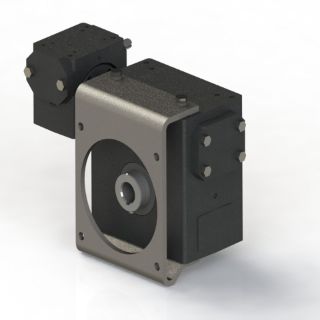

Actual Product May Vary From Image

1803 150/1 WR 1.000 (SIDE MT) HUB

Name: 1803 150/1 WR 1.000 (SIDE MT) HUB
SKU: 1803 150/1 WR 1.000 (SIDE MT) HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-18504 1800 Double Reduction Right Angle Worm Gear Reducer, Shaft Input, Hollow Bore Output, 0.251 hp Input, 150:1 Gear, 11.7 rpm Maximum Output, 775 in-lb Output Torque Rating

Manufacturer part number: 0230-18504

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 1800, 150:1 Gear Ratio, 0.251 hp Input, Shaft Input, Hollow Bore Output, 1/2 in Dia Input, 1 in Dia Output, 11.7 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 775 in-lb Output Torque, 1-3/4 in Centre Distance, 1/8 x 1/16 in Input Keyway, 59.1 % Efficiency, Conventional Oil Lubrication, Side Mounting, Cast Iron

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	1-3/4 in
Efficiency:	59.1 %
Gear Ratio:	150:1
Horsepower:	0.251 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1/2 in Dia
Input Type:	Shaft
Keyway Size:	1/8 x 1/16 in Input
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Mounting Type:	Side
Output Maximum Speed:	11.7 rpm
Output Size:	1 in Dia
Output Type:	Hollow Bore
Series:	1800
Torque Rating:	775 in-lb Output
