Actual Product May Vary From Image

180XL037 GAT

Name: 180XL037 GAT
Brand: Gates
SKU: 180XL037 GAT
Price: 9.77 USD
Availability: InStock

PowerGrip™ Timing

Manufacturer: Gates

Manufacturer part number: 180XL037

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
30	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$9.77

Qty:

Product Details

Brand Name

Gates

Alternate Supplier #

92571312

Description

The trapezoidal tooth profile of PowerGrip™ Timing belts offers a maintenance-free and economical alternative to conventional chain drives and is well suited for use in positioning applications.

Features

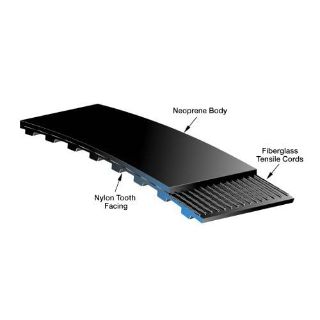

Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation. Neoprene body provides protection against grime, grease, oil and moisture. Nylon tooth facing provides a durable wear surface for long service life. Maintenance-free, clean solution for roller chain drive conversion with no lubrication or retensioning required.

Specifications

Belt Back Side:	Smooth
Belt Height (in):	0.09
Belt Height (mm):	2.29
Belt/Slab:	Belt
Color:	Black
Cord Material:	Fiberglass
Country of Origin:	US
End:	Endless
Fabric Material:	Nylon Teeth
GC Base Product:	PowerGrip® Timing Belts - 1/5" Pitch (.200"/XL)
Harmonized Tariff Code:	4010.39.4500
Length Pitch (in):	18
Length Pitch (mm):	457
Material:	Polychloroprene (Neoprene)
Max Temp (°C):	+100
Max Temp (°F):	+212
Min Temp (°C):	-30
Min Temp (°F):	-22
Number of Teeth:	90
Pitch (in):	0.2
Pitch (mm):	5
Proposition 65:	NO
Section:	XL
Sided:	Single Sided
Sprock Comptab:	PowerGrip GT
Standard Width:	YES
Stat Conductive:	No
Tooth Form:	Trapezoidal Design
Tooth Height (in):	0.05
Tooth Height (mm):	1.27
Width (in):	0.375
Width (mm):	10
