181070F-01-1 BSF

Name: 181070F-01-1 BSF
Brand: Bussmann
SKU: 181070F-01-1 BSF
Availability: OutOfStock

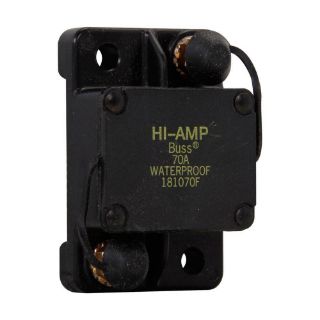

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

181070F-01-1

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 28 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Switchable

Description

Type I, Type II and Type III circuit breakers match the ATM and ATC fuse footprint. Ultra-thin, to fit in tight spaces, they're the smallest automotive circuit breakers on the market. Provide voltage and current limiting functionality and are designed for the on- and off-highway requirements of trucks, RVs, construction, agriculture, ATV and material handling equipment.

Bussmann Automotive Circuit Breaker, Switchable, 30 VDC, 70 A, 3 kA Interrupt, Thermal Trip, 1 Pole, Reset Lever Actuator, 1/4-28 TPI Stud Connection, IP67 Enclosure, Surface Mounting, -25 to 180 deg F, 1.9 in L x 1.44 in W x 2.89 in H Dimensions, Thermoplastic, Black

Application

Trucks, buses, RVs, Marine Vessels, Equipment and Other Applications

Standards

Specifications

Actuator Type:	Reset Lever
Amperage Rating:	70 A
Color:	Black
Connection Type:	1/4-28 TPI Stud
Country of Origin:	MX
Dimensions:	1.9 in L x 1.44 in W x 2.89 in H
Enclosure Type:	IP67
Interrupt Rating:	3 kA
Material:	Thermoplastic
Mounting Type:	Surface
Number of Poles:	1
Temperature Rating:	-25 to 180 deg F
Trip Type:	Thermal
Voltage Rating:	30 VDC
