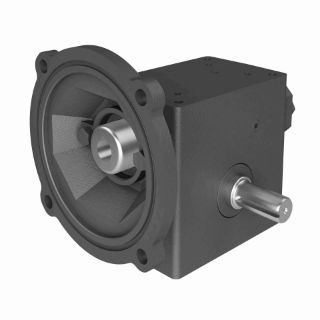

Actual Product May Vary From Image

184 60/1 C WR 56C HUB

Name: 184 60/1 C WR 56C HUB
SKU: 184 60/1 C WR 56C HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-01552 180PCX Right Angle Single Reduction Style C Worm Gear Reducer, C-Face Quill Input, Shaft Output, 0.37 hp Input, 60:1 Gear, 29.2 rpm Maximum Output, 490 in-lb Output Torque Rating

Manufacturer part number: 0230-01552

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style C, Series: 180PCX, 60:1 Gear Ratio, 0.37 hp Input, C-Face Quill Input, Shaft Output, 5/8 in Dia Input, 0.75 in Dia x 1.78 in L Output, 29.2 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 490 in-lb Output, 1-3/4 in Centre Distance, 3/16 x 3/32 in Output Keyway, 61.9 % Efficiency, Conventional Oil Lubrication, Cast Iron

Features

Modular Design Universal Mounting Dimensions Increased thermal capacity and Increased efficiency Cast iron housing Alloy shafting Viton® seals

Specifications

Center Distance (IN):	1.751
Center Distance Range:	1" thru 3.25"
Country of Origin:	United States of America
Frame Size:	56C
Gear Type:	Worm
Housing Material:	Cast Iron
Input Diameter (IN):	0.625
Input HP:	0.37
Input Style:	C-FACE QUILL
Model Code:	184
Output Diameter (IN):	0.75
Output RPM:	29.2
Output Shaft:	Solid Shaft
Output Torque:	490
Product Line:	POWERCUBEX WORM GEAR DRIVE
Product Type:	RIGHT ANGLE
Ratio:	60:1
Ratio Range:	5 thru 60
Series Code:	180PCX
Service Factor:	1
Style:	C
