Actual Product May Vary From Image

185L 25/1 A WR 56C 1.000 HUB

Name: 185L 25/1 A WR 56C 1.000 HUB
SKU: 185L 25/1 A WR 56C 1.000 HUB
Availability: OutOfStock

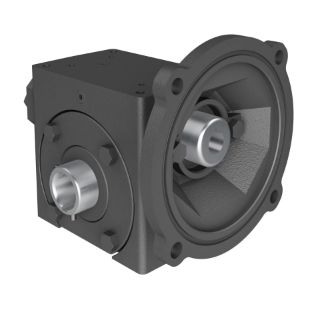

Hub City® PowerCubeX® 0230-02040 180LPCX Right Angle Single Reduction Style A Worm Gear Reducer, C-Face Quill Input, Hollow Bore Output, 0.78 hp Input, 25:1 Gear, 70 rpm Maximum Output, 586 in-lb Output Torque Rating

Manufacturer part number: 0230-02040

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 180LPCX, 25:1 Gear Ratio, 0.78 hp Input, C-Face Quill Input, Hollow Bore Output, 5/8 in Dia Input, 1 in Dia Output, 70 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 586 in-lb Output Torque, 1-3/4 in Centre Distance, 83.1 % Efficiency, PAG Synthetic Oil Lubrication, Cast Iron, 4.81 in W

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	1-3/4 in
Dimensions:	4.81 in W
Efficiency:	83.1 %
Gear Ratio:	25:1
Horsepower:	0.78 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	PAG Synthetic Oil
Material:	Cast Iron
Output Maximum Speed:	70 rpm
Output Size:	1 in Dia
Output Type:	Hollow Bore
Series:	180LPCX
Torque Rating:	586 in-lb Output
